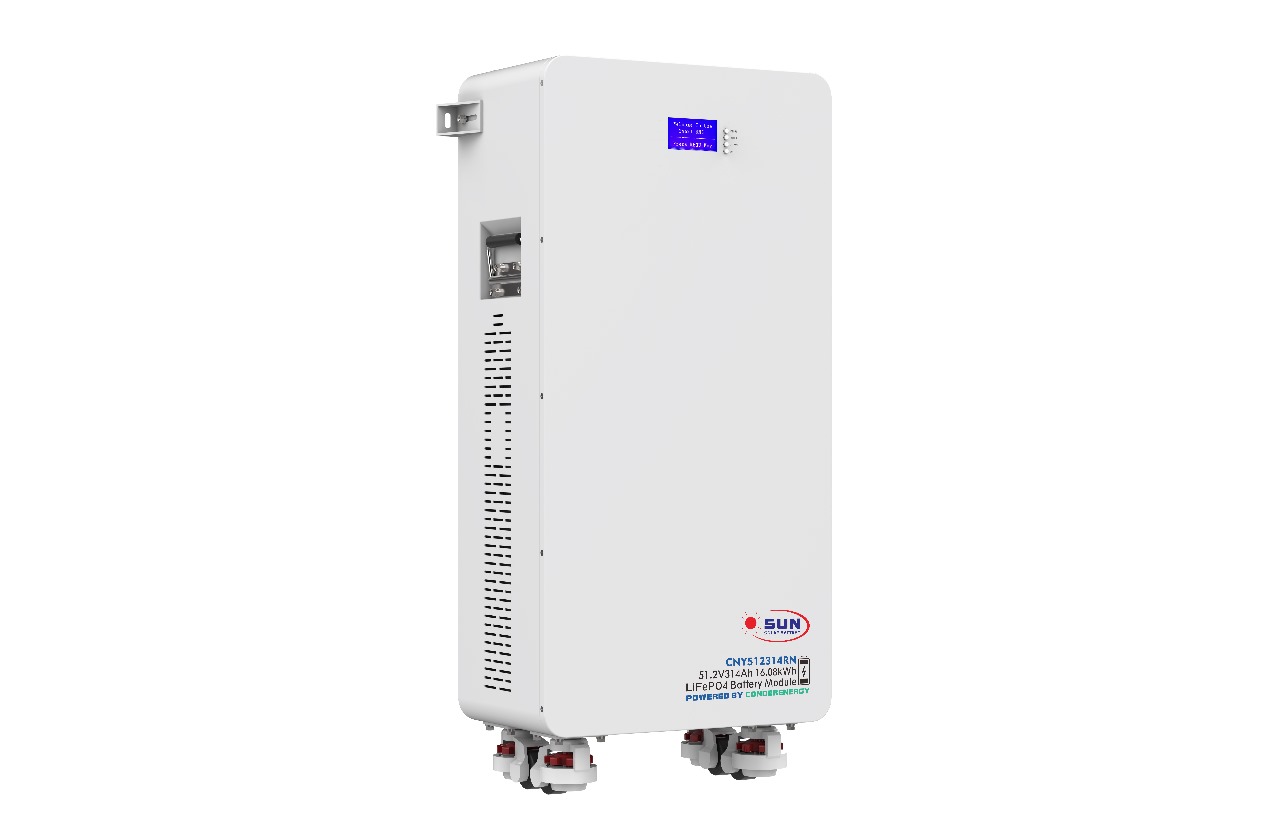

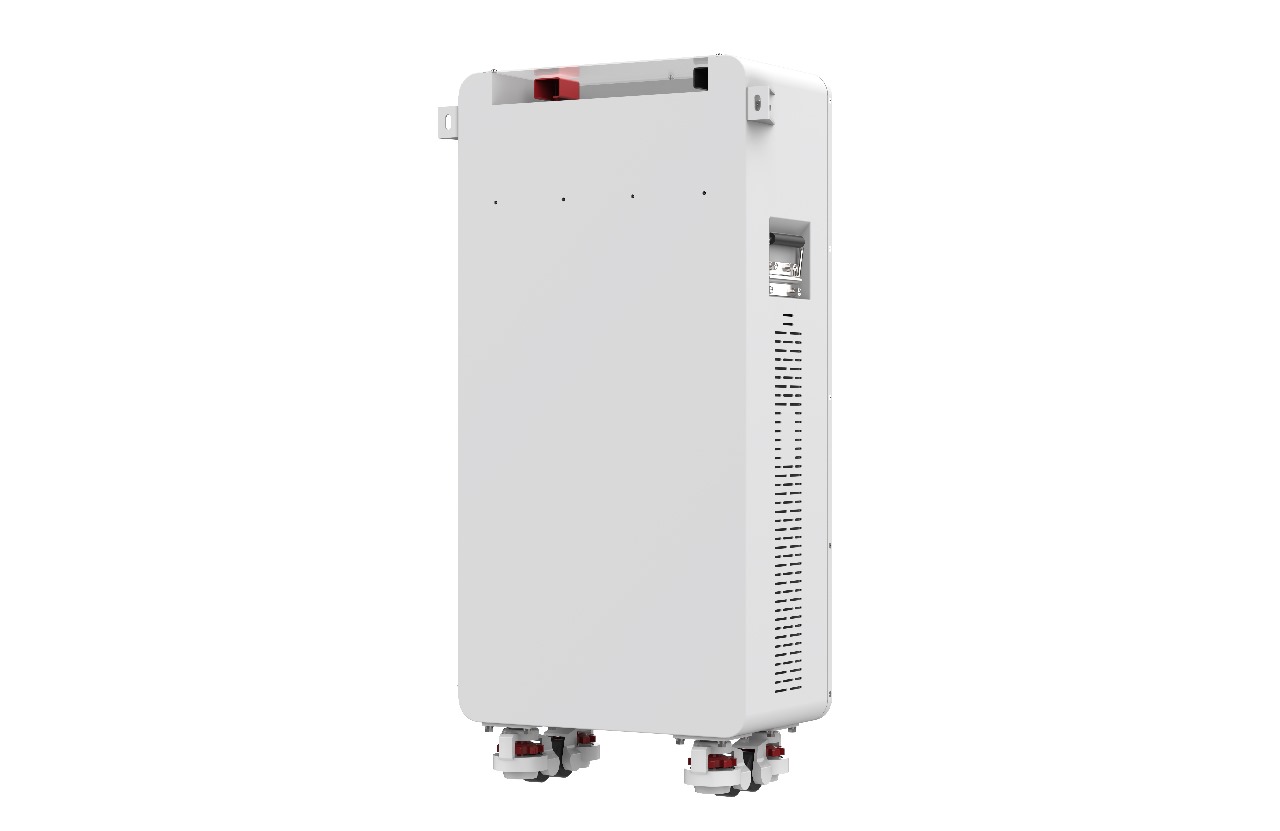

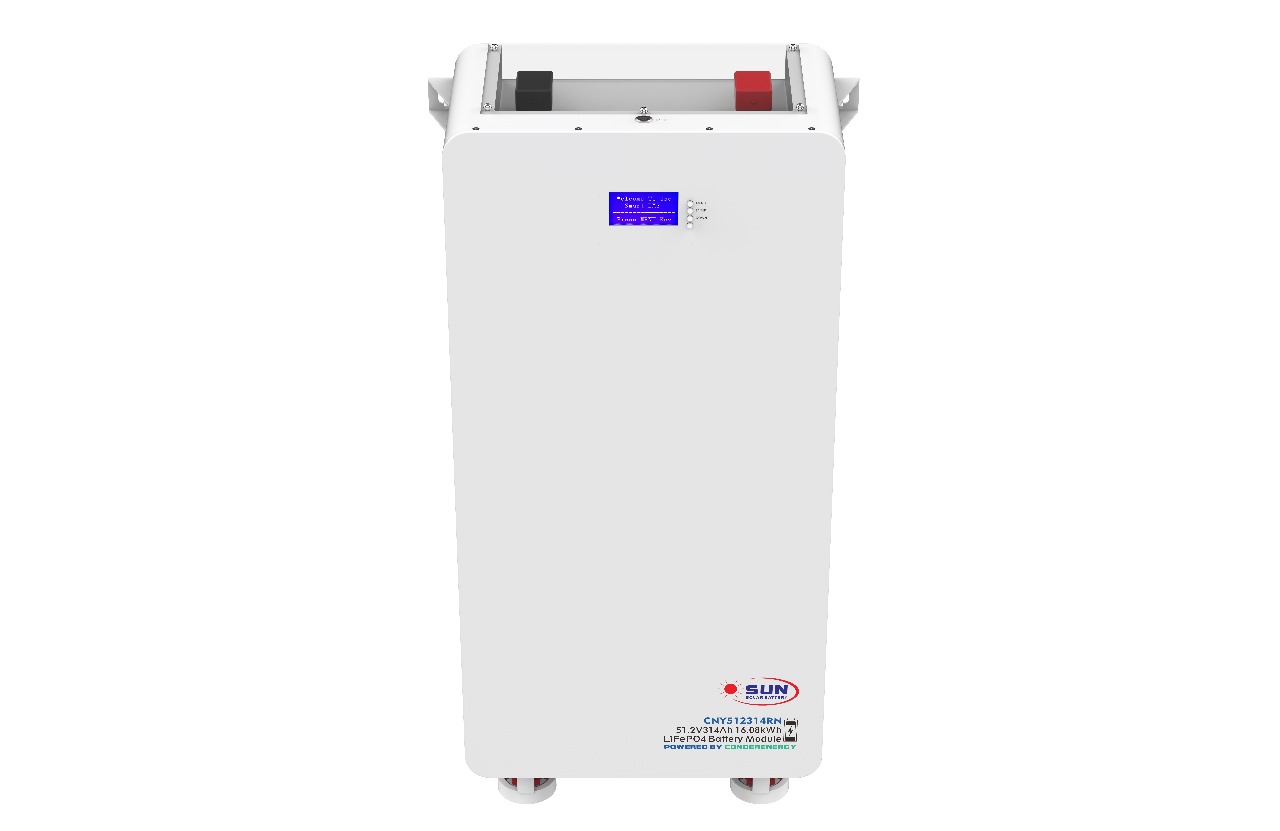

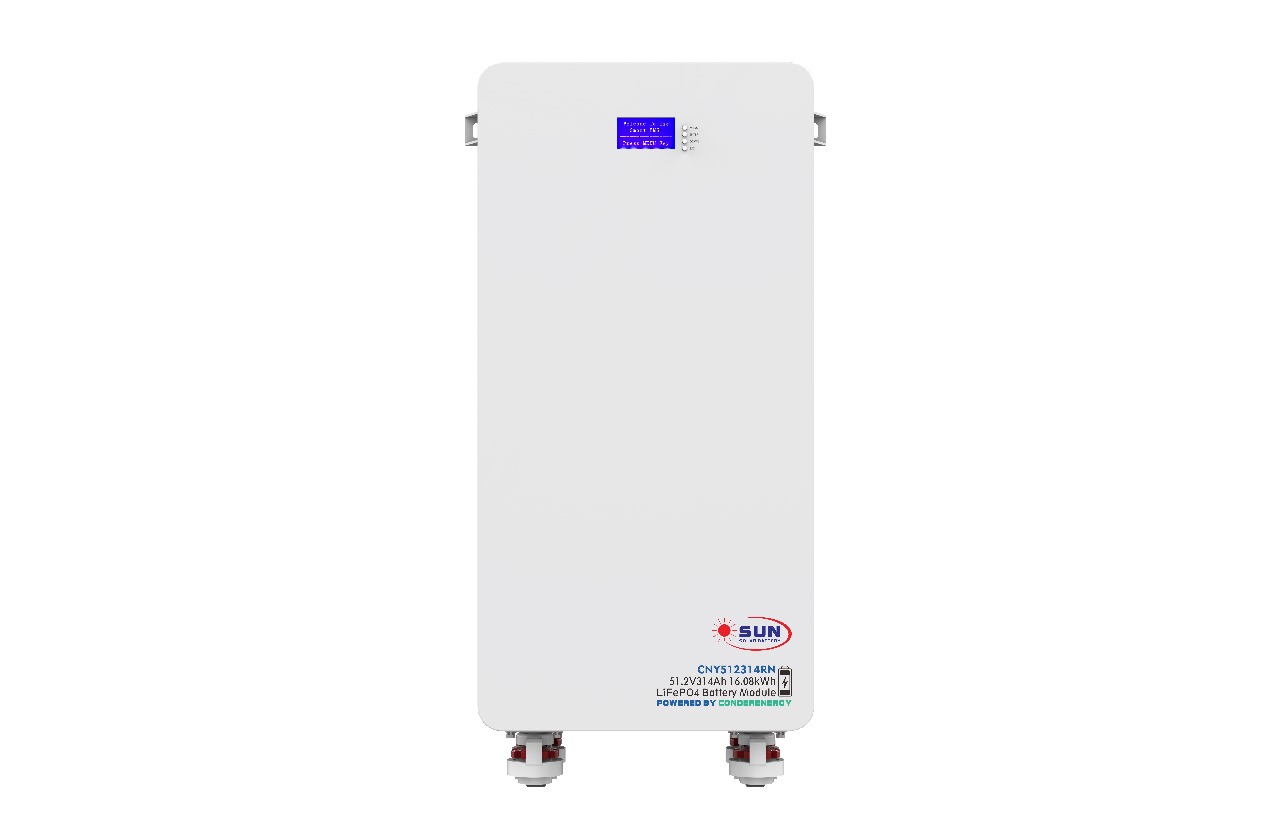

SUN 51.2V 314AH 16.08KWH LITHIUM BATTERY CNY512314RN

SUN 51.2V 314AH 16.08KWH LITHIUM BATTERY CNY512314RN

• Product Features
  Ultra high safe LiFePO4 battery
  Built-in BMS for multiple protection & longer lifespan
  Active balancing function and lower self-consumption
  Lightweight module design for fast installation & easy maintenance
  Parallel up to 16 modules for flexible capacity extension.
  Wide temperature range for more application scenes.

Specifications:

• Cell Type LiFePO4
• Nominal Voltage Nominal Capacity 51.2V
• Nominal Energy 314Ah
• Weight (approx.) 116kg

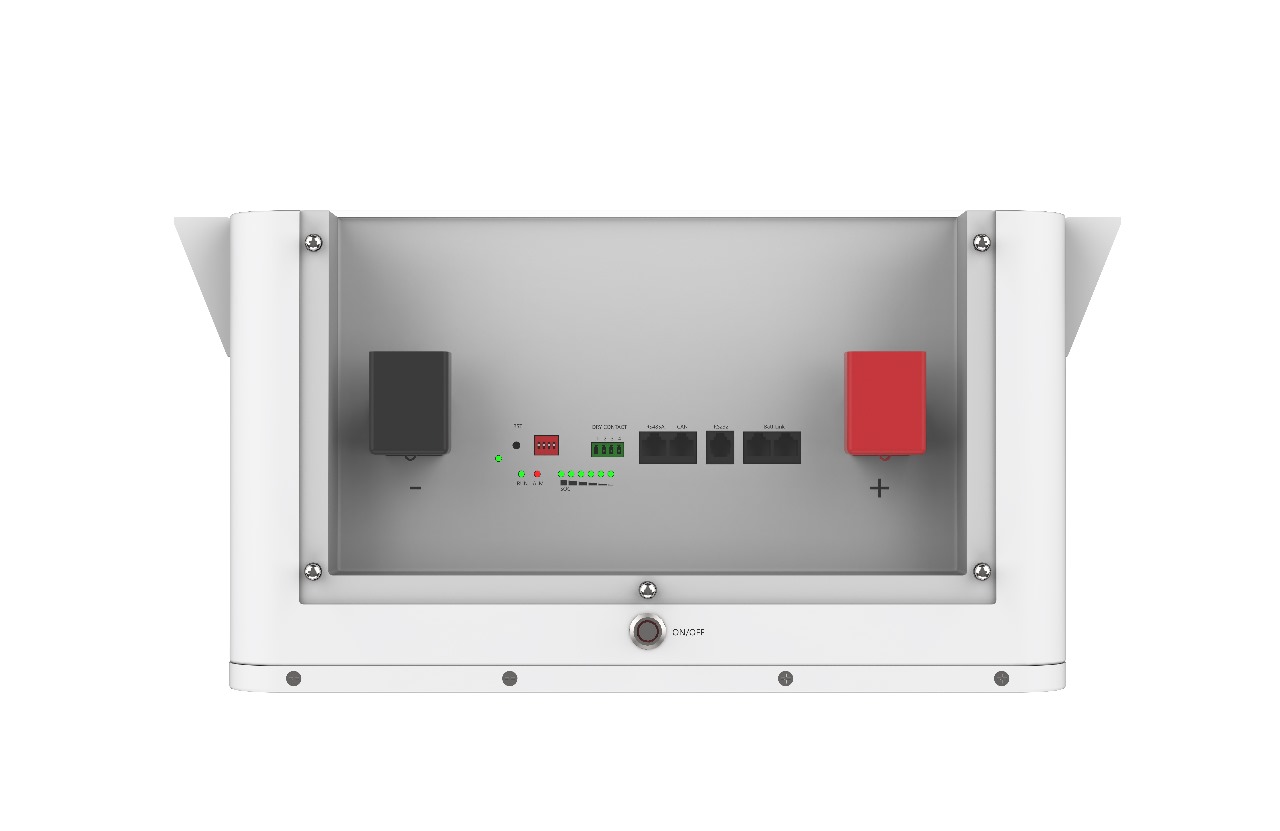

• Terminal Type: Screw
• Case Material SPCC
• BMS Built-In Yes
• Max.Parallel Connection Qty 16pcs
• Series Connection No
• Cycle Life (0.2C, 25°C@80% DOD) 6000 Cycles
• Recommend Charge Voltage Max Charge Voltage 57.6v
• Recommend Charge Current 50A
• Max Continuous Charge Current 200A
• Recommend Discharge Voltage 57.6V
• Max Discharging Voltage 43.2V
• Max Continuous Discharge Current 200A
• Peak Discharge Current 250A

What’s in the box:

• Battery
• Battery Cables
• Warranty Card
• Communication cable
• User Manual

Spec Sheet – Sun (CNY512314RN) Spec Sheet

ALSO CHECK OUT: SUN 10.2kw Hybrid Solar Inverter 2 MPPT (S-2500)

Follow our Facebook Page

Warranties:

5 Years Warranty
All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at void.
