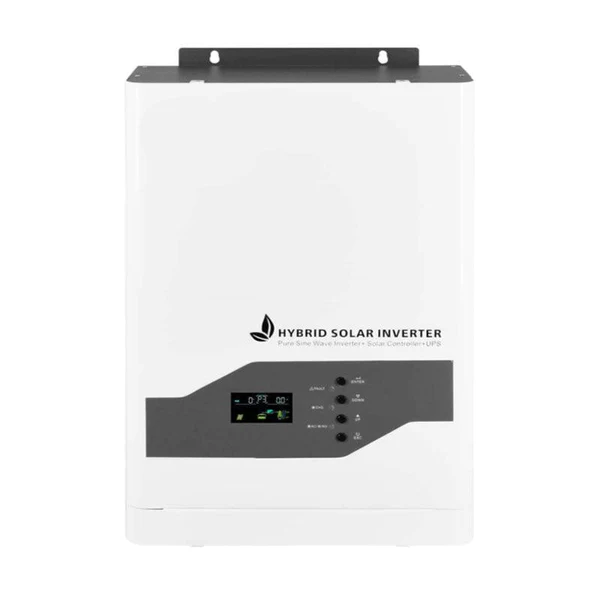

Introducing the 5.5KVA 48V MPPT Pure Sine Wave Solar Inverter -5048 48V, a powerful and versatile inverter/charger that combines the functions of an inverter, MPPT solar charger, and battery charger. With a compact and portable design, it offers reliable and uninterruptible power support for all your needs.

The comprehensive LCD display allows for easy user-configurable button operations such as battery charging current, AC/solar charger priority, and acceptable input voltage based on different applications. It also features a configurable input voltage range for home appliances and personal computers via LCD setting, as well as a configurable AC/solar charger priority via LCD setting.

The 5.5KVA 48V MPPT Pure Sine Wave Solar Inverter -5048 48V is compatible with mains voltage or generator power and has an auto restart function while AC is recovering. It also includes overload and short circuit protection and a smart battery charger design for optimized battery performance. Additionally, it comes with a cold start function.

The inverter mode provides a rated power of 5000VA/5000W, with a DC input of 48VDC, 100A and an AC output of 230VAC, 50Hz, 22A. The AC charger mode has an AC input of 230VAC, 50Hz, 36A, a DC output of 54VDC, 10-60A, and an AC output of 230VAC, 50Hz, 22A. The solar charger mode offers a rated current of 60A, a system voltage of 48VDC, a min. solar voltage of 60VDC, a best Vmp range of 60-65VDC, and a max. solar voltage of 105VDC.

The package includes one 5KVA 48V MPPT Pure Sine Wave Solar Inverter – 5048 48V. Don’t settle for unreliable power sources, invest in the FS-1007 and enjoy uninterrupted power support with ease.

Features: 5.5KVA 48V MPPT Pure Sine Wave Solar Inverter -5048 48V

Compatible with mains voltage or generator power
Auto restart while AC is recovering
Overload and short circuit protection
Smart battery charger design for optimized battery performance
Cold start function

Specifications:

Model: FS-1007
Item Code:VL-5538M-FS
Package Weight: 21600g
Package Dimensions: L: 53.2cm, H: 19.4cm, W: 38.6cm

Inverter Mode:

Rated Power; 5000VA/5000W
DC Input; 48VDC,100A
AC Output; 230VAC, 50Hz, 22A

AC Charger Mode:

AC Input; 230VAC, 50Hz, 36A
DC Output; 54VDC, 10-60A
AC Output; 230VAC, 50Hz, 22A

Solar Charger Mode:

Rated Current; 60A
System Voltage; 48VDC
Min.Solar Voltage; 60VDC
Best Vmp Range; 60-65VDC
Max.Solar Voltage; 105VDC

What’s in the box

1 X 5KVA 48V MPPT Pure Sine Wave Solar Inverter -5048 48V
