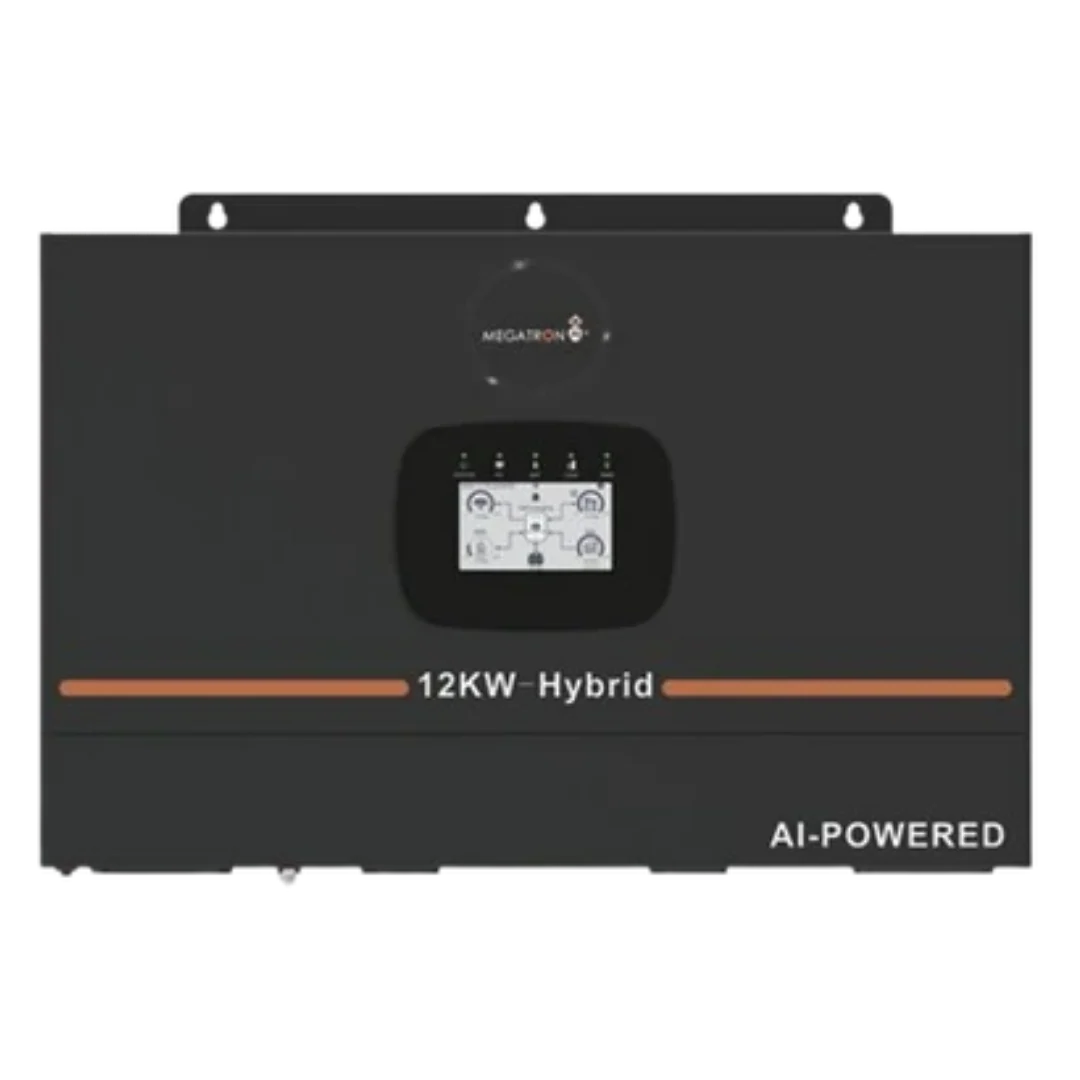

Megatron 12kW 48V Hybrid Inverter

The Megatron 12kW 48V Hybrid Inverter is a high-capacity single-phase inverter designed for residential and commercial backup-power and solar applications. The MT-12K1P-BL-G3 combines high PV input capacity, strong battery charging and discharge capability, fast switchover and flexible system expansion.

Key Features

12kW rated output
48V battery system
Up to 24kW recommended PV array size
Up to 18kW maximum PV input power
2 MPPTs, with 2 strings per MPPT
Maximum battery discharge current up to 280A
Maximum solar charge current up to 250A
Up to 9 units in parallel
4.3-inch 800 × 480 interactive touchscreen
UPS-level transfer time of approximately 4ms
Generator input and generator auto-start/stop support
Dual AC outputs for load management
Pure sine wave output
AI-powered energy management features

High PV Input Capacity

The Megatron 12kW Hybrid Inverter supports a recommended PV array size of up to 24,000W and maximum PV input power of 18,000W. Its two MPPTs provide flexibility when configuring solar panels across separate PV strings.

280A Battery Discharge Capability

The MT-12K1P-BL-G3 supports up to 280A maximum battery discharge current, with up to 12,000W maximum charge/discharge power. This makes it suitable for larger battery-backed loads where the battery bank is correctly sized.

48V and 51.2V Battery Compatibility

A 48V-class inverter can work with compatible 48V and 51.2V lithium battery systems where the battery operating-voltage range, BMS requirements and inverter compatibility are supported. Always confirm the specific battery manufacturer’s specifications and approved compatibility before installation.

Fast Backup Switchover

The inverter has a transfer time of approximately 4ms, providing fast changeover between supported power sources for suitable backup applications.

Parallel Expansion

Up to 9 compatible Megatron units can be connected in parallel, allowing system capacity to be expanded when required. Parallel installations must follow the manufacturer’s configuration and installation requirements.

Generator and Dual AC Output

The Megatron 12kW inverter includes a dedicated generator input and supports generator control functions. Dual AC outputs can also be used for smart load management in suitable installations.

Touchscreen Display

A 4.3-inch 800 × 480 interactive display provides access to inverter information and system settings. The inverter also supports monitoring through its available communication interfaces and app functionality.

Specifications

Brand	Megatron
Model	MT-12K1P-BL-G3
Rated output power	12,000W
Battery type	Li-ion / Lead-acid
Nominal battery voltage	48V
Battery voltage range	40–60V
Maximum battery discharge current	280A
Maximum charge/discharge power	12,000W
Maximum solar charge current	250A
Maximum AC charge current	210A
Recommended maximum PV array size	24,000W
Maximum PV input power	18,000W
Maximum PV input voltage	500V
MPPT voltage range	90–450V
Number of MPPTs	2
Number of strings per MPPT	2
Nominal AC voltage	230V
Nominal frequency	50 / 60Hz
Peak AC power	24,000W
Transfer time	4ms
Peak efficiency	94%
MPPT efficiency	>99.9%
Dimensions	625 × 400 × 120mm
Weight	17.9kg
Operating temperature	-10°C to 60°C
Cooling	Fan cooling
Parallel capability	Up to 9 units

Frequently Asked Questions

What battery voltage does the Megatron 12kW inverter use?

The inverter has a nominal battery voltage of 48V and a specified battery voltage range of 40–60V.

Can the Megatron 12kW inverter work with a 51.2V battery?

Yes, a suitable 51.2V lithium battery can be used where its operating-voltage range and BMS requirements are compatible with the inverter. Confirm compatibility before installation.

How much solar can the Megatron 12kW inverter handle?

The MT-12K1P-BL-G3 has a recommended maximum PV array size of 24kW and maximum PV input power of 18kW, subject to the manufacturer’s electrical limits.

How many Megatron 12kW inverters can be connected in parallel?

Up to 9 compatible units can be connected in parallel, subject to the manufacturer’s installation and configuration requirements.

Does the Megatron 12kW inverter support a generator?

Yes. The inverter includes a generator input and supports generator control functions.

Related Solar Products

Explore more products from VumaTech:

Backup / Alternate Power
Solar Inverters
Solar Batteries
VumaTech Online Shop
Contact VumaTech

Warranty

3 Year Repair Warranty: This product includes a 3-year repair warranty, subject to the applicable warranty terms and conditions.

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null and void.
