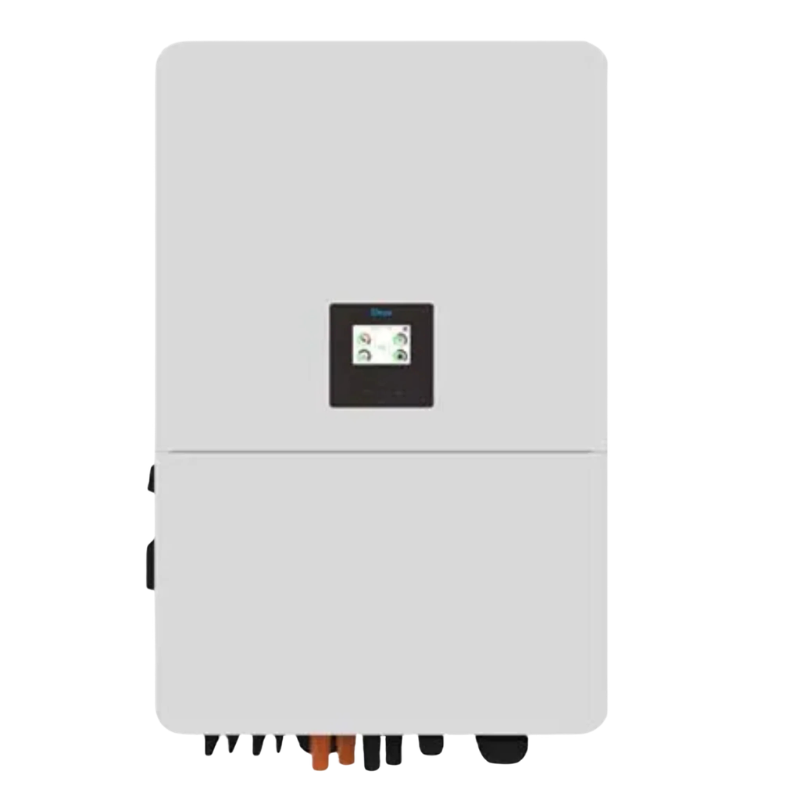

Deye 80kw Hybrid High-Voltage 3-Phase Inverter

The Deye Deye 80kw 3 Phase Hybrid Inverter (High Voltage), SUN-80K-SG02HP3-EU-EM6 is a high-capacity, three-phase hybrid inverter designed for large-scale solar energy systems. Supporting high-voltage lithium batteries and featuring six Maximum Power Point Trackers (MPPTs), it offers efficient energy conversion and flexible integration for both on-grid and off-grid applications.

Detailed Features

High Efficiency:
- Achieves a maximum efficiency of 97.6%, ensuring optimal energy conversion from solar panels to usable power.
Flexible Battery Integration:
- Compatible with high-voltage lithium batteries ranging from 160V to 1000V, allowing for scalable energy storage solutions.
Multiple MPPTs:
- Equipped with six MPPTs, each supporting two strings, enabling precise tracking of solar panel performance and maximizing energy harvest.
Robust Design:
- Features an IP65-rated enclosure, providing protection against dust and water ingress, suitable for various environmental conditions.
Smart Monitoring:
- Offers multiple communication interfaces, including RS485, CAN, Wi-Fi, Bluetooth, 4G, and LAN (optional), facilitating real-time monitoring and remote management.
Peak Shaving & Load Shifting:
- Configurable for load prioritization and time-of-use optimization, reducing peak-time energy costs.
Advanced Safety Protections:
- Built-in protection against overvoltage, short circuit, reverse polarity, and overheating.
IP65 Outdoor Rated Enclosure:
- Dustproof and waterproof design allows for indoor or outdoor installations in harsh weather conditions.
Built-in Energy Management System (EMS):
- Allows users to prioritize loads, set charging/discharging schedules, and monitor performance in real-time.

Technical Specifications

Model Number: SUN-80K-SG02HP3-EU-EM6
Battery Type: Lithium-ion
Battery Voltage Range: 160V-1000V
Max. Charging Current: 80+80
Max. Discharging Current: 80+80
Charging Strategy for Li-ion Battery: Self-adaption to BMS
Max. PV Access Power: 16000W
Max. PV Input Power: 128000W
Max. PV Input Voltage: 1000V
Start-up Voltage: 180V
MPPT Voltage Range: 150V-850V
Rated PV Input Voltage: 650V
Max. Operating PV Input Current: 36+36+36+36+36+36
Max. Input Short-Circuit Current: 54+54+54+54+54+54
Rated AC Input/Output Active Power: 80000W
Max. AC Input/Output Apparent Power: 88000
Rated AC Input/Output Current: 121.3/115.9
Peak Power (off-grid): 1.5times of rated power, 10s
Communication Interface: RS485/RS232/CAN
Monitor Mode: GPRS/WIFI/Bluetooth/4G/LAN (optional)
Operating Temperature Range: -40 to +60°C, >45°C Derating
Ingress Protection(IP) Rating: IP65
Inverter Technology: Non-isolated
Type of Cooling: Intelligent Air Cooling
Warranty: 5/10 years
Safety / EMC Standard: IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN62109-2

Applications of the Deye 80kw 3 Phase Hybrid Inverter (High Voltage)

Commercial and Industrial Facilities:
- Ideal for businesses seeking to reduce energy costs and enhance energy independence through solar power integration.
Microgrids and Remote Areas:
- Suitable for off-grid installations or areas with unreliable grid access, providing consistent and reliable power supply.
Energy Storage Systems:
- Can be integrated into energy storage solutions, allowing for load shifting and improved energy management.
Grid-Tied Systems with Backup:
- Offers seamless transition between grid and battery power, ensuring uninterrupted power supply during outages.

The Deye 80kW 3-Phase High Voltage Hybrid Inverter is a powerful and scalable energy solution engineered for demanding commercial and industrial environments. Its combination of efficiency, flexibility, and intelligent control makes it a perfect fit for organizations aiming to maximize solar self-consumption, reduce energy costs, and build resilient power systems.

What’s in the box?
- 1 x Inverter
- 1 x User Manual
5 -Year Warranty

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
