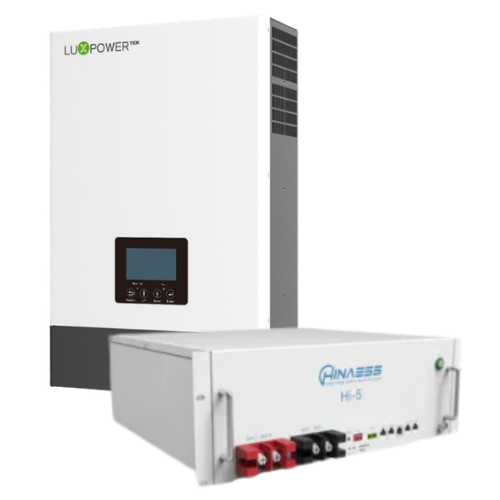

The Luxpower 6kw backup system with HinaEss 5.12kwh battery is the ideal backup power system for your home or business.

This Combo Consists of the following:

1 x Luxpower Solar Inverter SNA6000 Offgrid 6KW 48v
1 x HinaESS Lithium Battery Ion Hi-5 5.12KWH 51.2V 100Ah

Inverter:

Luxpower Off-Grid Pure Sine Wave Inverter (SNA6000) – 6Kw / 6000W / 48V / MPPT

General

Model: SNA 6000 WPV
Battery voltage: 48VDC.

Inverter Output

Waveform: Pure Sine-Wave.
Rated Power: 6000W.
Parallel Capability: Yes, 16 units.
AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz.
Surge Power: 9000w.
Efficiency (Peak): 93%.
Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances).

Solar Charger

Maximum PV Array Power: 8000W.(4000w per MPPT)
2 MPPT Controllers
MPPT Range @ Operating Voltage: 120VDC ~385 VDC.
Maximum PV Array Open Circuit Voltage: 480VDC.
Start Up Voltage: 100vdc
Maximum Efficiency: 98%.
Maximum Solar Charge Current: 17A/17A.

AC Charger

Charge Current: 80A.
AC Input Voltage: 230 VAC.
Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances).
Frequency Range: 50Hz/60Hz (Auto sensing)

Build in BMS (Battery management System)

BMS Compatible with
Pylon
Dyness
Shoto
Revov
UZ Energy
Lithium Battery South Africa
Volta
Hina – Approved Battery
Lemoen
Bluenova
Freedom Won
Greenrich
Hubble

Package Size: 65cm x 44cm x 23.5cm

Wifi Remote Monitoring Included

Flexible Working Modes with settable charge and load power supply priority

Support Solar and AC take the load jointly.

What’s in the box?
- 1 x Inverter
- 1 x User Manual
2 -Year Warranty on inverter

Battery:

The Hina ESS 5.12kWh Lithium Battery Hi-5.

CALL/WHATSAPP US TO ARRANGE IN STORE PURCHASE

It is an excellent choice for residential and commercial applications Ultra Safe LFP Material: Built with Lithium Iron Phosphate (LFP) material, this battery ensures ultra-safety, offering enhanced stability and protection for your energy storage needs, Together for the Blue Future.

ONLINE DEAL ONLY CAN BE ORDERED FOR IN STORE COLLECTION IF NEEDED

Product Advantages:

10 year warranty

Ultra safe LFP material

Short circuit protection

Flexible remote upgrade

Wide range inverter compatibility

Parallel up to 32 modules

1C rate continuous charge/discharge

Multi protection to avoid over discharge

Smart BMS management for longer lifespan

Active balancing charging, low self consumption

Description

Model: Hi-5
Cell Type: LFP
Rated Power: 5.12KWH
Rated Capacity: 100Ah
Rated Voltage: 51.2V
Charge Voltage: 56.5V
Charge / Discharge Rating: 1C
Maximum Charge / Discharge Current: 100A
Discharge Peak Current: 105A – 15s / 120A – 0.5s
Parallel Capacity: Up to 32 Units
Mounting Type: Rack Mount
Enclosure Protection: IP20
Communication: CAN / RS485
Humidity: 5% to 85% (Non-Condensing)
Working Temperature: -20°C to 55°C
Storage Temperature: -10°C to 35°C
Certification: CE UN38.3 / IEC62619
Weight: 50kg
Dimensions: 48.1 x 45.26 cm

10 -Year Warranty on battery

Also Check Out: Luxpower 14kW Single Phase Eco Hybrid Inverter SNA-EU-LT-14K and HINAESS PowerGem Max 16kWh lithium battery

Warranties: All inverters and batteries must be installed by a qualified electrical wireman or Master electrician with a valid registration with the Department of Labour. A valid electrical certificate of compliance (COC) must be issued once installed, specific to the installation of the backup or solar system. Any warranty claim submitted without installation photos, a valid COC, and proof of a qualified wireman/master electrician installing the unit, can be rejected and will render the warranty claim null at the void.
